SDO HMI 2014-07-19 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.45 | 0.00 | 3.35 | -14.51 | 51.44 | -31.07 | 122.53 | 0.5963 | 636.7 | 488.3 | |
|
previous
or next observation for the same group /

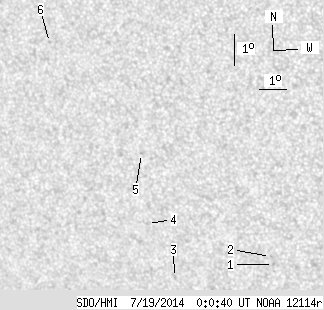

back to the solar disc SDO HMI 2014-07-19 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.49 | -16.71 | 55.26 | -27.25 | 129.09 | 0.5671 | 696.0 | 635.9 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -16.45 | 55.19 | -27.32 | 128.65 | 0.5657 | 671.0 | 462.2 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -17.29 | 51.55 | -30.96 | 126.47 | 0.6131 | 644.0 | 484.3 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -15.56 | 50.85 | -31.66 | 123.48 | 0.6084 | 570.0 | 492.3 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -13.30 | 51.00 | -31.51 | 120.29 | 0.5913 | 669.0 | 583.2 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -9.92 | 48.04 | -34.47 | 113.12 | 0.6085 | 570.0 | 335.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
