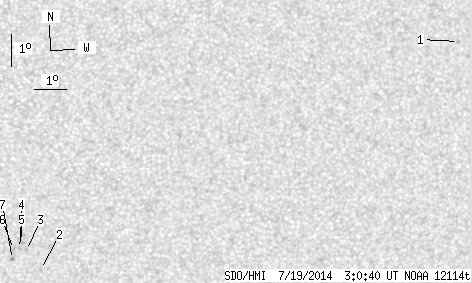

SDO HMI 2014-07-19 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.16 | 0.00 | 6.39 | -13.68 | 85.78 | 4.92 | 194.77 | 0.3359 | -582.0 | -518.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.89 | 98.05 | 17.20 | 233.78 | 0.3645 | 750.0 | 602.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.90 | 85.04 | 4.18 | 191.86 | 0.3442 | -797.0 | -612.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -14.29 | 84.59 | 3.73 | 190.96 | 0.3328 | -817.0 | -644.9 | |
| 0.00 | 3.36 | 0.00 | 1.76 | -14.00 | 84.42 | 3.57 | 190.66 | 0.3275 | -866.0 | -699.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -14.22 | 84.36 | 3.51 | 190.36 | 0.3310 | -884.0 | -762.4 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -14.25 | 84.18 | 3.32 | 189.80 | 0.3310 | -690.0 | -538.7 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.57 | 84.15 | 3.29 | 189.55 | 0.3362 | -770.0 | -628.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
