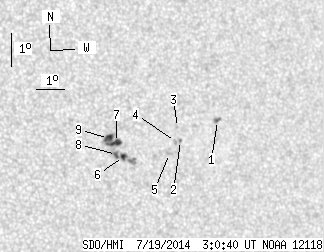

SDO HMI 2014-07-19 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.90 | 37.05 | 6.83 | 21.36 | 6.74 | 111.72 | 30.86 | 275.27 | 0.5135 | 279.1 | 302.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.00 | 3.18 | 0.60 | 1.89 | 7.33 | 114.78 | 33.92 | 276.15 | 0.5587 | -738.4 | -624.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 6.78 | 113.37 | 32.51 | 275.24 | 0.5380 | -679.0 | -695.5 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 7.18 | 113.29 | 32.43 | 276.00 | 0.5371 | -648.0 | -498.8 | |
| 0.00 | 1.82 | 0.00 | 1.06 | 6.76 | 113.19 | 32.33 | 275.21 | 0.5353 | -799.0 | -619.4 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 6.40 | 112.94 | 32.08 | 274.56 | 0.5316 | -751.0 | -602.1 | |
| 1.91 | 8.62 | 1.09 | 4.96 | 6.38 | 111.29 | 30.43 | 274.60 | 0.5069 | 783.9 | 675.7 | |
| 4.63 | 16.25 | 2.65 | 9.29 | 6.82 | 111.07 | 30.21 | 275.48 | 0.5039 | 895.6 | 728.9 | |
| 0.00 | 3.18 | 0.00 | 1.82 | 6.46 | 111.04 | 30.18 | 274.76 | 0.5033 | 1072.0 | 906.7 | |
| 4.36 | -7.00 | 2.49 | -7.00 | 6.95 | 110.79 | 29.93 | 275.77 | 0.4999 | 932.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
