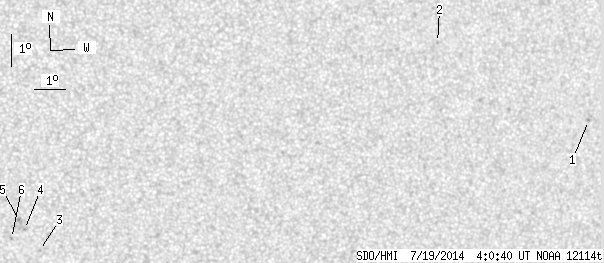

SDO HMI 2014-07-19 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.53 | 0.00 | 4.55 | -13.07 | 88.99 | 8.68 | 203.97 | 0.3588 | -303.3 | -340.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | -11.15 | 102.60 | 22.29 | 234.31 | 0.4600 | 765.0 | 639.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.54 | 97.47 | 17.16 | 232.28 | 0.3704 | 721.0 | 547.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.94 | 85.06 | 4.75 | 193.39 | 0.3469 | -694.0 | -596.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.26 | 84.57 | 4.26 | 192.50 | 0.3341 | -830.0 | -654.9 | |
| 0.00 | 2.72 | 0.00 | 1.43 | -13.96 | 84.41 | 4.10 | 192.23 | 0.3289 | -999.0 | -817.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -14.54 | 84.17 | 3.86 | 191.17 | 0.3374 | -783.0 | -640.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
