SDO HMI 2014-07-19 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.98 | 0.00 | 5.29 | -13.69 | 86.84 | 7.62 | 200.72 | 0.3529 | -565.8 | -500.9 | |
|
previous
or next observation for the same group /

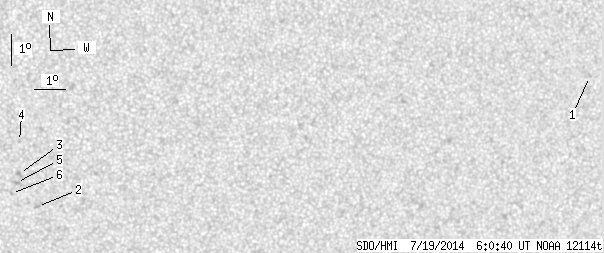

back to the solar disc SDO HMI 2014-07-19 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.15 | 102.78 | 23.57 | 235.78 | 0.4763 | 641.0 | 566.7 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -14.91 | 85.07 | 5.85 | 196.38 | 0.3511 | -750.0 | -567.1 | |
| 0.00 | 2.90 | 0.00 | 1.52 | -13.84 | 84.48 | 5.26 | 195.64 | 0.3316 | -905.0 | -702.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.81 | 84.45 | 5.24 | 196.49 | 0.3151 | -727.0 | -541.9 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -14.13 | 84.39 | 5.17 | 195.16 | 0.3358 | -839.0 | -716.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -14.48 | 84.24 | 5.02 | 194.47 | 0.3407 | -815.0 | -686.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
