SDO HMI 2014-07-19 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.89 | 29.78 | 6.92 | 17.41 | 6.70 | 111.35 | 32.14 | 275.10 | 0.5324 | 552.8 | 463.4 | |
|
previous
or next observation for the same group /

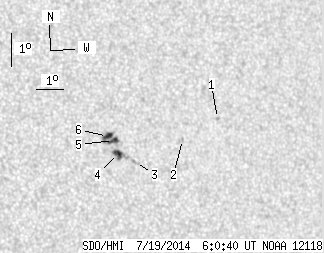

back to the solar disc SDO HMI 2014-07-19 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.83 | 7.35 | 114.86 | 35.64 | 276.04 | 0.5834 | -790.0 | -659.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 6.77 | 113.49 | 34.28 | 275.11 | 0.5637 | -673.0 | -618.7 | |
| 0.00 | 3.09 | 0.00 | 1.81 | 6.15 | 111.72 | 32.50 | 274.05 | 0.5376 | 587.0 | 471.1 | |
| 4.36 | 9.90 | 2.54 | 5.77 | 6.45 | 111.12 | 31.91 | 274.64 | 0.5290 | 967.7 | 717.6 | |
| 3.54 | 14.07 | 2.06 | 8.18 | 6.86 | 110.97 | 31.76 | 275.42 | 0.5269 | 900.9 | 720.9 | |
| 3.99 | -5.00 | 2.32 | -5.00 | 6.99 | 110.76 | 31.55 | 275.68 | 0.5239 | 882.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
