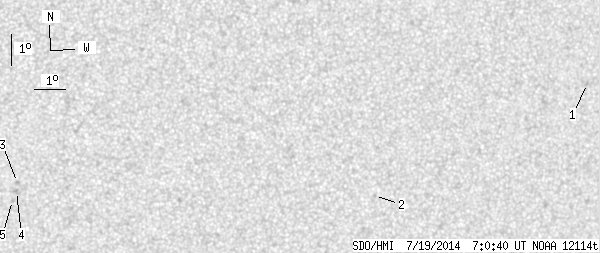

SDO HMI 2014-07-19 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.62 | 0.00 | 4.62 | -13.62 | 89.28 | 10.61 | 207.25 | 0.3774 | -289.0 | -312.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.82 | -11.11 | 102.78 | 24.11 | 236.46 | 0.4829 | 695.0 | 636.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -14.47 | 95.94 | 17.27 | 221.48 | 0.4358 | 535.0 | 454.5 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -13.84 | 84.43 | 5.77 | 197.06 | 0.3340 | -1046.0 | -777.3 | |
| 0.00 | 2.81 | 0.00 | 1.48 | -14.13 | 84.41 | 5.74 | 196.73 | 0.3384 | -889.0 | -734.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.42 | 84.29 | 5.62 | 196.16 | 0.3424 | -740.0 | -590.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
