SDO HMI 2014-07-19 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.26 | 0.00 | 5.06 | -12.33 | 93.60 | 16.02 | 219.84 | 0.4161 | 88.9 | 64.8 | |
|
previous
or next observation for the same group /

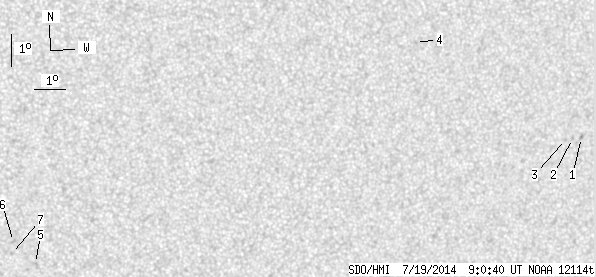

back to the solar disc SDO HMI 2014-07-19 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.83 | -11.18 | 102.75 | 25.18 | 237.46 | 0.4970 | 782.0 | 652.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -11.20 | 102.44 | 24.87 | 237.11 | 0.4933 | 661.0 | 554.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -11.22 | 102.20 | 24.63 | 236.82 | 0.4904 | 791.0 | 718.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.00 | 96.98 | 19.41 | 236.76 | 0.3950 | 793.0 | 681.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -14.76 | 85.11 | 7.53 | 200.85 | 0.3577 | -872.0 | -646.1 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -14.04 | 84.39 | 6.81 | 199.72 | 0.3426 | -818.0 | -637.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.43 | 84.33 | 6.76 | 199.20 | 0.3483 | -715.0 | -508.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
