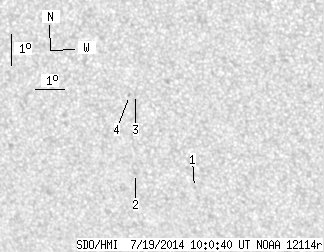

SDO HMI 2014-07-19 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.09 | 0.00 | 2.37 | -14.23 | 51.70 | -25.32 | 127.38 | 0.5243 | 692.0 | 538.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.37 | -15.78 | 53.31 | -23.72 | 131.59 | 0.5196 | 672.0 | 534.9 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -15.39 | 51.30 | -25.72 | 128.77 | 0.5388 | 784.0 | 531.4 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -12.84 | 51.61 | -25.41 | 125.10 | 0.5134 | 637.0 | 486.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -12.88 | 51.40 | -25.62 | 124.94 | 0.5163 | 675.0 | 585.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
