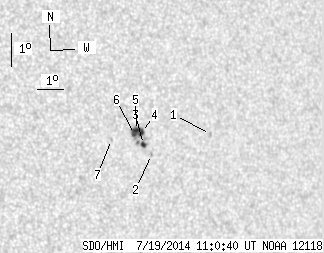

SDO HMI 2014-07-19 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.35 | 23.87 | 6.19 | 14.35 | 6.82 | 111.03 | 34.56 | 275.18 | 0.5676 | 638.2 | 461.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.07 | 6.73 | 113.55 | 37.08 | 274.92 | 0.6031 | -810.0 | -633.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 6.23 | 111.27 | 34.79 | 274.13 | 0.5709 | 467.0 | 420.4 | |
| 1.91 | 19.88 | 1.14 | 11.92 | 6.55 | 110.99 | 34.52 | 274.70 | 0.5670 | 843.4 | 667.7 | |
| 2.72 | -3.00 | 1.63 | -3.00 | 6.92 | 110.95 | 34.48 | 275.35 | 0.5665 | 867.5 | 999999 | |
| 4.27 | -3.00 | 2.55 | -3.00 | 6.99 | 110.77 | 34.30 | 275.49 | 0.5640 | 939.9 | 999999 | |
| 1.45 | -3.00 | 0.87 | -3.00 | 6.87 | 110.69 | 34.21 | 275.28 | 0.5627 | 1027.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 6.76 | 109.83 | 33.35 | 275.12 | 0.5503 | 542.0 | 495.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
