SDO HMI 2014-07-19 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.41 | 82.60 | 14.74 | 46.29 | -21.78 | 68.08 | -8.39 | 163.16 | 0.4680 | 483.1 | -33.9 | |
|
previous
or next observation for the same group /

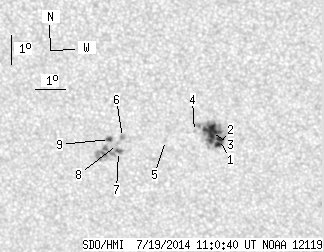

back to the solar disc SDO HMI 2014-07-19 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.09 | 52.10 | 1.72 | 29.03 | -21.76 | 69.41 | -7.07 | 165.61 | 0.4617 | 971.4 | 561.3 | |
| 3.09 | -1.00 | 1.72 | -1.00 | -21.93 | 69.36 | -7.11 | 165.63 | 0.4644 | 760.3 | 999999 | |
| 16.97 | -1.00 | 9.46 | -1.00 | -21.52 | 69.15 | -7.32 | 164.98 | 0.4592 | 1050.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.50 | 68.59 | -7.88 | 163.87 | 0.4611 | 631.0 | 478.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.81 | 67.61 | -8.86 | 162.22 | 0.4702 | -852.0 | -510.7 | |
| 0.00 | 3.00 | 0.00 | 1.69 | -21.73 | 66.19 | -10.28 | 159.53 | 0.4761 | -963.0 | -824.3 | |
| 1.54 | 20.79 | 0.87 | 11.78 | -22.21 | 66.02 | -10.45 | 159.60 | 0.4839 | -943.6 | -701.7 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -21.97 | 66.00 | -10.47 | 159.39 | 0.4806 | -893.0 | -630.6 | |
| 1.72 | 2.72 | 0.97 | 1.54 | -21.80 | 65.75 | -10.72 | 158.80 | 0.4796 | -994.6 | -800.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
