SDO HMI 2014-07-19 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.52 | 0.00 | 6.87 | -10.81 | 94.44 | 18.52 | 227.46 | 0.4216 | 236.8 | 184.9 | |
|
previous
or next observation for the same group /

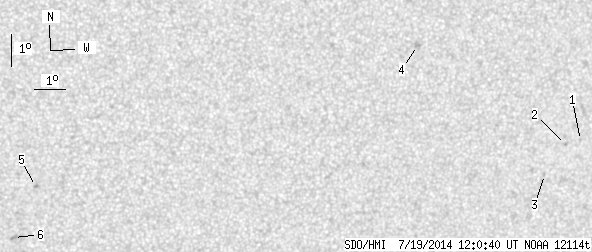

back to the solar disc SDO HMI 2014-07-19 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.58 | -11.18 | 102.79 | 26.87 | 239.11 | 0.5187 | 786.0 | 589.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -11.28 | 102.28 | 26.36 | 238.44 | 0.5130 | 781.0 | 570.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -12.21 | 101.65 | 25.72 | 236.26 | 0.5121 | 717.0 | 579.8 | |
| 0.00 | 4.54 | 0.00 | 2.47 | -7.99 | 97.03 | 21.11 | 238.96 | 0.4180 | 835.0 | 695.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -12.15 | 84.95 | 9.03 | 207.94 | 0.3289 | -805.0 | -644.2 | |
| 0.00 | 2.72 | 0.00 | 1.44 | -13.77 | 84.31 | 8.39 | 204.12 | 0.3482 | -893.0 | -773.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
