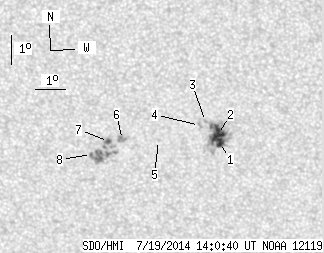

SDO HMI 2014-07-19 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.59 | 83.84 | 12.02 | 46.82 | -21.80 | 67.80 | -7.02 | 165.83 | 0.4629 | 536.9 | -105.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.08 | 47.00 | 3.38 | 26.12 | -21.84 | 69.37 | -5.45 | 168.84 | 0.4574 | 872.1 | 481.3 | |
| 13.43 | -1.00 | 7.46 | -1.00 | -21.57 | 69.31 | -5.51 | 168.60 | 0.4534 | 1074.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -21.13 | 68.94 | -5.88 | 167.62 | 0.4479 | 832.0 | 618.4 | |
| 0.00 | 2.81 | 0.00 | 1.56 | -21.27 | 68.73 | -6.09 | 167.28 | 0.4507 | 749.0 | 622.1 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -21.79 | 67.36 | -7.46 | 164.86 | 0.4637 | -770.0 | -659.4 | |
| 0.00 | 6.08 | 0.00 | 3.41 | -21.77 | 66.16 | -8.66 | 162.57 | 0.4686 | -768.0 | -733.7 | |
| 1.63 | 6.99 | 0.92 | 3.93 | -21.84 | 65.69 | -9.13 | 161.75 | 0.4719 | -1052.2 | -786.6 | |
| 0.45 | 18.60 | 0.26 | 10.50 | -22.29 | 65.10 | -9.72 | 160.98 | 0.4814 | -712.2 | -730.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
