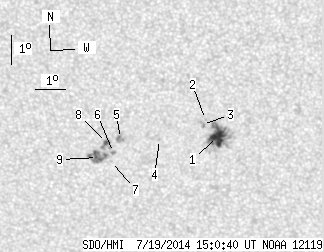

SDO HMI 2014-07-19 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.41 | 77.76 | 11.35 | 43.38 | -21.82 | 67.79 | -6.48 | 166.90 | 0.4612 | 382.5 | -125.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.60 | 43.01 | 10.33 | 23.87 | -21.63 | 69.32 | -4.95 | 169.76 | 0.4528 | 1034.6 | 554.5 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -21.05 | 68.94 | -5.32 | 168.74 | 0.4450 | 705.0 | 587.4 | |
| 0.00 | 2.63 | 0.00 | 1.46 | -21.22 | 68.84 | -5.43 | 168.60 | 0.4479 | 740.0 | 615.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.74 | 67.40 | -6.87 | 166.00 | 0.4608 | -749.0 | -509.4 | |
| 0.00 | 5.26 | 0.00 | 2.94 | -21.72 | 66.11 | -8.15 | 163.50 | 0.4657 | -941.0 | -816.6 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -22.20 | 65.85 | -8.42 | 163.32 | 0.4740 | -940.0 | -806.7 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.51 | 65.76 | -8.50 | 163.36 | 0.4789 | -585.0 | -482.1 | |
| 1.81 | 6.71 | 1.02 | 3.77 | -21.87 | 65.64 | -8.63 | 162.70 | 0.4699 | -1012.3 | -771.6 | |
| 0.00 | 15.88 | 0.00 | 8.95 | -22.38 | 65.31 | -8.96 | 162.43 | 0.4790 | -866.0 | -758.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
