SDO HMI 2014-07-19 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.86 | 81.84 | 12.73 | 45.59 | -21.82 | 67.77 | -5.94 | 167.96 | 0.4595 | 352.5 | -28.5 | |
|
previous
or next observation for the same group /

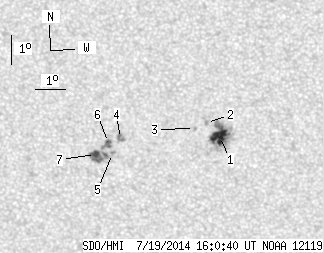

back to the solar disc SDO HMI 2014-07-19 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.42 | 46.09 | 9.11 | 25.56 | -21.66 | 69.32 | -4.39 | 170.90 | 0.4518 | 1052.2 | 545.7 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -21.18 | 68.91 | -4.80 | 169.87 | 0.4455 | 903.0 | 742.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.39 | 68.51 | -5.20 | 169.14 | 0.4499 | 621.0 | 514.9 | |
| 0.00 | 6.17 | 0.00 | 3.45 | -21.75 | 66.05 | -7.66 | 164.47 | 0.4640 | -946.0 | -807.5 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -22.27 | 65.76 | -7.95 | 164.23 | 0.4729 | -1012.0 | -823.3 | |
| 1.54 | 6.71 | 0.86 | 3.76 | -21.89 | 65.65 | -8.06 | 163.78 | 0.4678 | -1060.4 | -872.4 | |
| 4.90 | 17.33 | 2.76 | 9.75 | -22.31 | 65.19 | -8.52 | 163.19 | 0.4759 | -848.8 | -708.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
