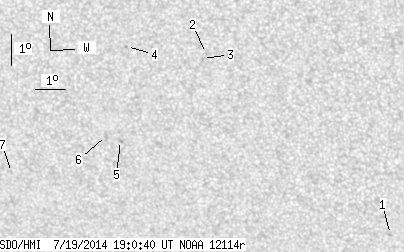

SDO HMI 2014-07-19 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.72 | 0.00 | 6.03 | -15.60 | 52.51 | -19.54 | 137.04 | 0.4750 | 496.9 | 444.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.90 | -18.74 | 59.84 | -12.21 | 153.22 | 0.4462 | 692.0 | 528.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -12.97 | 54.25 | -17.80 | 135.24 | 0.4248 | 690.0 | 629.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -13.13 | 54.10 | -17.95 | 135.28 | 0.4282 | 692.0 | 517.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -12.81 | 51.61 | -20.44 | 131.06 | 0.4534 | 628.0 | 572.7 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -15.86 | 51.11 | -20.94 | 135.24 | 0.4901 | 746.0 | 656.7 | |
| 0.00 | 3.27 | 0.00 | 1.86 | -15.71 | 50.65 | -21.40 | 134.40 | 0.4935 | 568.0 | 386.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -17.03 | 47.20 | -24.85 | 132.15 | 0.5440 | -538.0 | -430.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
