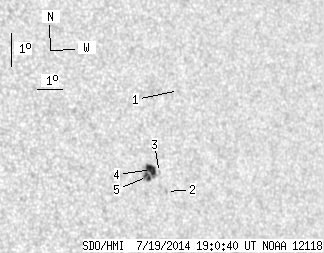

SDO HMI 2014-07-19 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.52 | 21.59 | 6.68 | 13.72 | 6.98 | 111.00 | 38.95 | 275.24 | 0.6288 | 626.6 | 498.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.76 | 9.31 | 112.29 | 40.24 | 278.81 | 0.6474 | -580.0 | -337.1 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 6.26 | 111.45 | 39.41 | 274.09 | 0.6349 | 586.0 | 481.6 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 6.85 | 111.23 | 39.18 | 275.03 | 0.6320 | 326.0 | 318.7 | |
| 6.80 | 18.14 | 4.32 | 11.51 | 6.96 | 110.93 | 38.88 | 275.21 | 0.6279 | 813.3 | 656.6 | |
| 3.72 | -4.00 | 2.36 | -4.00 | 6.76 | 110.75 | 38.70 | 274.89 | 0.6254 | 940.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
