SDO HMI 2014-07-19 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.07 | 0.00 | 4.50 | -14.18 | 51.26 | -19.68 | 134.29 | 0.4597 | 621.0 | 490.0 | |
|
previous
or next observation for the same group /

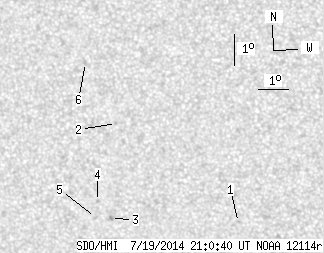

back to the solar disc SDO HMI 2014-07-19 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.25 | -15.83 | 55.44 | -15.50 | 143.61 | 0.4351 | 896.0 | 721.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -12.74 | 51.67 | -19.27 | 132.62 | 0.4392 | 743.0 | 620.0 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -15.81 | 51.19 | -19.75 | 136.84 | 0.4772 | 777.0 | 703.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -15.27 | 50.81 | -20.13 | 135.48 | 0.4755 | 701.0 | 511.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -15.79 | 50.68 | -20.25 | 136.10 | 0.4823 | 574.0 | 475.9 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -10.83 | 50.79 | -20.15 | 127.94 | 0.4307 | 35.0 | 102.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
