SDO HMI 2014-07-19 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.92 | 99.60 | 18.83 | 55.22 | -21.69 | 68.07 | -2.87 | 174.12 | 0.4503 | 149.5 | 54.1 | |
|
previous
or next observation for the same group /

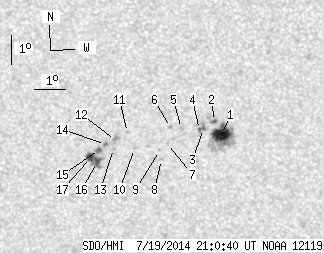

back to the solar disc SDO HMI 2014-07-19 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.23 | 52.79 | 11.18 | 29.21 | -21.52 | 69.41 | -1.53 | 176.78 | 0.4452 | 1135.0 | 350.7 | |
| 1.00 | 5.99 | 0.55 | 3.29 | -21.08 | 69.18 | -1.76 | 176.25 | 0.4385 | 987.5 | 709.1 | |
| 0.82 | 5.35 | 0.45 | 2.95 | -21.32 | 68.82 | -2.12 | 175.52 | 0.4427 | 895.4 | 699.2 | |
| 0.63 | -3.00 | 0.35 | -3.00 | -21.35 | 68.69 | -2.25 | 175.25 | 0.4434 | 804.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.32 | 68.10 | -2.84 | 174.01 | 0.4437 | -630.0 | -452.9 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.28 | 67.74 | -3.20 | 173.25 | 0.4438 | 784.0 | 593.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.83 | 67.63 | -3.31 | 173.17 | 0.4525 | -537.0 | -373.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.38 | 67.42 | -3.52 | 172.90 | 0.4614 | -709.0 | -469.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.07 | 67.36 | -3.58 | 172.69 | 0.4567 | -726.0 | -519.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.00 | 66.54 | -4.40 | 171.02 | 0.4576 | -403.0 | -298.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.46 | 66.33 | -4.61 | 170.38 | 0.4497 | -815.0 | -611.2 | |
| 0.00 | 4.26 | 0.00 | 2.37 | -21.74 | 65.92 | -5.02 | 169.67 | 0.4550 | -848.0 | -792.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.01 | 65.85 | -5.09 | 169.64 | 0.4594 | -319.0 | -451.8 | |
| 0.45 | 1.81 | 0.25 | 1.01 | -21.87 | 65.59 | -5.35 | 169.06 | 0.4581 | -1088.6 | -926.3 | |
| 1.00 | 3.45 | 0.56 | 1.92 | -22.05 | 65.38 | -5.56 | 168.74 | 0.4613 | -999.5 | -842.6 | |
| 4.26 | 16.69 | 2.39 | 9.34 | -22.46 | 65.30 | -5.64 | 168.76 | 0.4678 | -898.1 | -624.1 | |
| 5.53 | -16.00 | 3.10 | -16.00 | -22.32 | 65.07 | -5.87 | 168.26 | 0.4665 | -883.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
