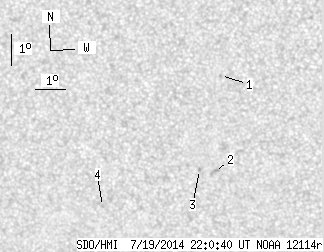

SDO HMI 2014-07-19 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.36 | 0.00 | 3.57 | -15.56 | 50.46 | -19.92 | 136.24 | 0.4762 | 405.5 | 465.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-19 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | -12.72 | 51.65 | -18.74 | 133.38 | 0.4329 | 754.0 | 607.8 | |
| 0.00 | 3.27 | 0.00 | 1.83 | -15.82 | 51.17 | -19.21 | 137.63 | 0.4718 | 793.0 | 685.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -15.77 | 50.67 | -19.71 | 136.84 | 0.4764 | 681.0 | 606.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -17.08 | 47.20 | -23.18 | 134.19 | 0.5268 | -606.0 | -416.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
