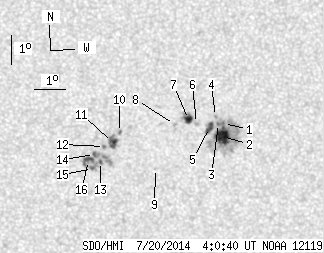

SDO HMI 2014-07-20 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.46 | 146.11 | 24.60 | 80.84 | -21.50 | 67.98 | 0.90 | 181.94 | 0.4462 | 327.6 | 73.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-20 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 84.49 | 0.25 | 46.69 | -20.98 | 69.47 | 2.39 | 185.11 | 0.4384 | 1017.8 | 419.2 | |
| 17.70 | -1.00 | 9.78 | -1.00 | -21.42 | 69.44 | 2.36 | 184.96 | 0.4453 | 1124.6 | 999999 | |
| 0.54 | -1.00 | 0.30 | -1.00 | -20.98 | 69.30 | 2.22 | 184.76 | 0.4382 | 1165.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.74 | 69.20 | 2.12 | 184.59 | 0.4343 | 918.0 | 793.2 | |
| 4.72 | -1.00 | 2.60 | -1.00 | -21.11 | 69.01 | 1.93 | 184.12 | 0.4399 | 957.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -20.97 | 68.59 | 1.51 | 183.23 | 0.4373 | 829.0 | 703.3 | |
| 5.45 | 9.71 | 2.99 | 5.34 | -20.84 | 68.32 | 1.24 | 182.68 | 0.4350 | 1007.6 | 559.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.01 | 67.87 | 0.79 | 181.69 | 0.4374 | 743.0 | 591.7 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.51 | 67.25 | 0.17 | 180.34 | 0.4607 | -701.0 | -596.6 | |
| 0.45 | 1.54 | 0.25 | 0.85 | -21.28 | 66.07 | -1.01 | 177.86 | 0.4417 | -825.8 | -684.4 | |
| 6.44 | 10.35 | 3.57 | 5.72 | -21.62 | 65.84 | -1.24 | 177.41 | 0.4472 | -1096.6 | -779.3 | |
| 0.54 | 1.54 | 0.30 | 0.85 | -21.75 | 65.57 | -1.51 | 176.87 | 0.4495 | -993.3 | -832.5 | |
| 1.00 | 32.67 | 0.56 | 18.18 | -22.26 | 65.44 | -1.64 | 176.66 | 0.4577 | -1001.4 | -764.6 | |
| 1.27 | -13.00 | 0.71 | -13.00 | -22.03 | 65.24 | -1.84 | 176.23 | 0.4541 | -1081.2 | 999999 | |
| 1.09 | -13.00 | 0.61 | -13.00 | -22.51 | 65.17 | -1.91 | 176.16 | 0.4616 | -738.8 | 999999 | |
| 4.81 | -13.00 | 2.68 | -13.00 | -22.23 | 65.04 | -2.04 | 175.86 | 0.4575 | -888.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
