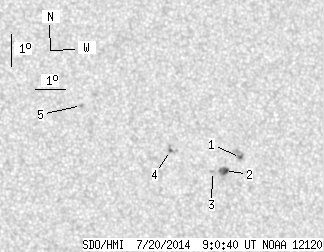

SDO HMI 2014-07-20 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.91 | 20.51 | 2.66 | 11.08 | 16.82 | 84.92 | 20.58 | 302.46 | 0.4004 | -313.1 | -249.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-20 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.64 | 6.44 | 0.35 | 3.51 | 16.78 | 86.07 | 21.73 | 301.00 | 0.4152 | -1017.9 | -748.3 | |
| 3.63 | 6.90 | 1.97 | 3.73 | 16.39 | 85.47 | 21.13 | 300.78 | 0.4043 | -1050.0 | -723.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 16.37 | 85.06 | 20.72 | 301.19 | 0.3985 | -790.0 | -586.5 | |
| 0.64 | 4.18 | 0.34 | 2.24 | 17.06 | 83.72 | 19.38 | 304.34 | 0.3858 | 949.4 | 717.4 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 18.55 | 80.88 | 16.54 | 311.73 | 0.3632 | 875.0 | 696.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
