SDO HMI 2014-07-20 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.91 | 205.37 | 30.43 | 114.01 | -21.27 | 68.11 | 5.42 | 191.34 | 0.4508 | 172.4 | 86.5 | |
|
previous
or next observation for the same group /

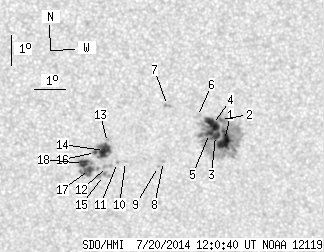

back to the solar disc SDO HMI 2014-07-20 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.07 | 138.85 | 7.82 | 77.07 | -21.27 | 69.51 | 6.82 | 194.15 | 0.4548 | 1086.4 | 367.3 | |
| 0.91 | -1.00 | 0.50 | -1.00 | -20.56 | 69.35 | 6.66 | 194.23 | 0.4434 | 998.1 | 999999 | |
| 4.81 | -1.00 | 2.67 | -1.00 | -21.10 | 69.21 | 6.52 | 193.64 | 0.4511 | 1027.5 | 999999 | |
| 12.16 | -1.00 | 6.72 | -1.00 | -20.72 | 69.10 | 6.40 | 193.62 | 0.4450 | 1235.1 | 999999 | |
| 3.36 | -1.00 | 1.86 | -1.00 | -21.03 | 69.01 | 6.32 | 193.27 | 0.4493 | 931.1 | 999999 | |
| 0.00 | 3.81 | 0.00 | 2.10 | -20.45 | 68.59 | 5.90 | 192.73 | 0.4390 | 641.0 | 597.5 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -20.07 | 67.60 | 4.91 | 190.82 | 0.4299 | 885.0 | 782.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.97 | 67.53 | 4.84 | 189.86 | 0.4590 | -776.0 | -563.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.14 | 67.37 | 4.68 | 189.47 | 0.4611 | -670.0 | -531.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.96 | 66.28 | 3.59 | 187.34 | 0.4559 | -484.0 | -407.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.99 | 66.02 | 3.33 | 186.80 | 0.4559 | -772.0 | -561.1 | |
| 0.00 | 3.63 | 0.00 | 2.02 | -22.12 | 65.69 | 3.00 | 186.11 | 0.4574 | -609.0 | -618.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.31 | 65.67 | 2.98 | 186.28 | 0.4447 | -728.0 | -770.5 | |
| 10.53 | 20.51 | 5.83 | 11.36 | -21.58 | 65.58 | 2.89 | 186.02 | 0.4487 | -1153.0 | -825.7 | |
| 0.00 | 6.44 | 0.00 | 3.60 | -22.43 | 65.57 | 2.87 | 185.78 | 0.4620 | -580.0 | -592.5 | |
| 1.27 | -14.00 | 0.70 | -14.00 | -21.64 | 65.29 | 2.60 | 185.40 | 0.4493 | -951.4 | 999999 | |
| 2.45 | 23.96 | 1.36 | 13.33 | -22.22 | 65.10 | 2.41 | 184.89 | 0.4581 | -962.6 | -760.8 | |
| 5.35 | -17.00 | 2.97 | -17.00 | -22.02 | 64.90 | 2.21 | 184.52 | 0.4546 | -1070.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
