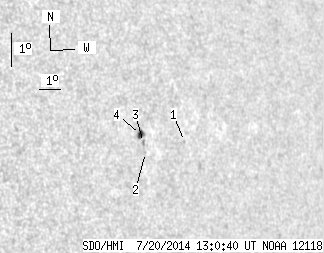

SDO HMI 2014-07-20 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.18 | 7.90 | 2.38 | 5.94 | 6.79 | 111.18 | 49.04 | 274.82 | 0.7547 | 461.5 | 343.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-20 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.71 | 6.58 | 112.95 | 50.81 | 274.57 | 0.7746 | -510.0 | -416.7 | |
| 0.00 | 0.64 | 0.00 | 0.48 | 6.37 | 111.05 | 48.91 | 274.25 | 0.7534 | 553.0 | 470.1 | |
| 0.00 | 1.63 | 0.00 | 1.22 | 6.68 | 111.00 | 48.86 | 274.66 | 0.7528 | 645.0 | 523.2 | |
| 3.18 | 4.72 | 2.38 | 3.53 | 6.93 | 110.90 | 48.76 | 275.00 | 0.7515 | 754.1 | 565.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
