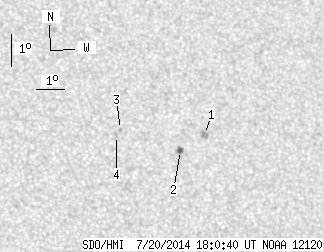

SDO HMI 2014-07-20 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.72 | 11.25 | 0.97 | 6.35 | 16.81 | 85.81 | 26.44 | 296.91 | 0.4798 | -72.5 | -311.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-20 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.81 | 0.00 | 2.74 | 16.93 | 86.86 | 27.49 | 296.34 | 0.4947 | -911.0 | -690.1 | |
| 1.72 | 3.63 | 0.97 | 2.05 | 16.46 | 85.93 | 26.56 | 296.10 | 0.4795 | -973.1 | -733.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 17.19 | 83.92 | 24.55 | 299.14 | 0.4563 | 750.0 | 671.3 | |
| 0.00 | 1.90 | 0.00 | 1.06 | 17.01 | 83.76 | 24.39 | 298.92 | 0.4529 | 817.0 | 631.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
