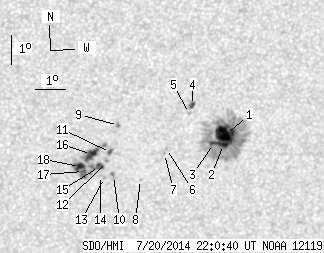

SDO HMI 2014-07-20 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.50 | 240.72 | 34.59 | 135.58 | -21.24 | 68.37 | 11.22 | 202.43 | 0.4773 | 251.6 | 69.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-20 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.38 | 171.32 | 16.57 | 96.70 | -20.98 | 69.55 | 12.40 | 204.79 | 0.4800 | 1190.8 | 289.1 | |
| 5.99 | -1.00 | 3.39 | -1.00 | -21.32 | 69.51 | 12.36 | 204.41 | 0.4844 | 982.5 | 999999 | |
| 2.54 | -1.00 | 1.43 | -1.00 | -21.28 | 69.18 | 12.02 | 203.86 | 0.4817 | 786.6 | 999999 | |
| 2.00 | 3.63 | 1.11 | 2.02 | -19.98 | 68.38 | 11.22 | 203.61 | 0.4586 | 1071.3 | 858.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.25 | 68.30 | 11.14 | 203.21 | 0.4619 | 788.0 | 582.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.42 | 67.62 | 10.47 | 200.96 | 0.4746 | 612.0 | 475.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.59 | 67.56 | 10.41 | 200.73 | 0.4767 | 749.0 | 583.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.46 | 66.82 | 9.67 | 198.73 | 0.4854 | -378.0 | -437.6 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -20.61 | 65.98 | 8.82 | 198.50 | 0.4544 | -919.0 | -818.3 | |
| 0.00 | 3.36 | 0.00 | 1.89 | -22.31 | 65.91 | 8.76 | 197.18 | 0.4789 | -851.0 | -674.4 | |
| 1.18 | 2.63 | 0.66 | 1.47 | -21.53 | 65.77 | 8.61 | 197.44 | 0.4667 | -865.5 | -729.9 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.83 | 65.68 | 8.53 | 197.08 | 0.4708 | -698.0 | -561.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.38 | 65.62 | 8.46 | 196.59 | 0.4786 | -654.0 | -563.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.31 | 65.48 | 8.33 | 196.38 | 0.4769 | -590.0 | -536.3 | |
| 3.54 | 49.61 | 1.99 | 27.79 | -22.00 | 65.43 | 8.28 | 196.49 | 0.4722 | -880.1 | -735.7 | |
| 9.16 | -15.00 | 5.12 | -15.00 | -21.58 | 65.14 | 7.99 | 196.21 | 0.4648 | -1133.9 | 999999 | |
| 2.27 | -15.00 | 1.27 | -15.00 | -22.16 | 64.91 | 7.75 | 195.40 | 0.4724 | -918.9 | 999999 | |
| 5.44 | -15.00 | 3.05 | -15.00 | -21.99 | 64.77 | 7.61 | 195.24 | 0.4692 | -1039.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
