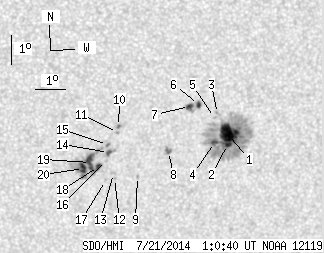

SDO HMI 2014-07-21 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.87 | 233.68 | 32.18 | 132.42 | -21.18 | 68.33 | 12.84 | 205.31 | 0.4867 | 235.2 | 107.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-21 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.94 | 155.58 | 15.31 | 88.47 | -20.97 | 69.57 | 14.08 | 207.65 | 0.4914 | 1165.9 | 309.9 | |
| 2.90 | -1.00 | 1.65 | -1.00 | -21.31 | 69.57 | 14.08 | 207.31 | 0.4959 | 940.2 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -20.25 | 69.14 | 13.64 | 207.65 | 0.4787 | 850.0 | 745.0 | |
| 2.72 | -1.00 | 1.55 | -1.00 | -21.23 | 69.13 | 13.63 | 206.65 | 0.4918 | 744.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.38 | 69.05 | 13.55 | 207.36 | 0.4799 | 608.0 | 523.7 | |
| 2.18 | 10.70 | 1.22 | 6.00 | -19.93 | 68.48 | 12.98 | 206.83 | 0.4698 | 956.9 | 711.7 | |
| 3.08 | -6.00 | 1.73 | -6.00 | -19.99 | 68.18 | 12.69 | 206.25 | 0.4686 | 861.2 | 999999 | |
| 1.45 | 4.72 | 0.82 | 2.67 | -21.50 | 67.61 | 12.11 | 203.80 | 0.4856 | 810.2 | 655.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.33 | 66.64 | 11.14 | 201.41 | 0.4915 | -751.0 | -613.2 | |
| 0.54 | 1.81 | 0.30 | 1.01 | -20.62 | 65.88 | 10.38 | 201.45 | 0.4630 | -831.2 | -666.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.82 | 65.86 | 10.36 | 201.24 | 0.4658 | -658.0 | -580.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.39 | 65.87 | 10.37 | 200.02 | 0.4882 | -661.0 | -504.8 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -22.22 | 65.82 | 10.33 | 200.07 | 0.4855 | -705.0 | -537.3 | |
| 1.91 | 5.08 | 1.07 | 2.86 | -21.50 | 65.61 | 10.11 | 200.23 | 0.4741 | -929.0 | -634.8 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -21.22 | 65.55 | 10.06 | 200.35 | 0.4699 | -656.0 | -641.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.77 | 65.56 | 10.06 | 199.94 | 0.4777 | -527.0 | -530.2 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.45 | 65.57 | 10.08 | 199.45 | 0.4876 | -522.0 | -443.1 | |
| 2.45 | 43.27 | 1.38 | 24.35 | -21.97 | 65.30 | 9.81 | 199.33 | 0.4793 | -863.8 | -673.5 | |
| 7.80 | -18.00 | 4.39 | -18.00 | -21.83 | 65.03 | 9.53 | 198.93 | 0.4759 | -1107.4 | 999999 | |
| 4.90 | -18.00 | 2.76 | -18.00 | -22.03 | 64.81 | 9.31 | 198.38 | 0.4777 | -1016.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
