SDO HMI 2014-07-21 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.90 | 211.95 | 30.62 | 120.61 | -21.16 | 68.22 | 13.82 | 206.96 | 0.4933 | 160.3 | 115.0 | |
|
previous
or next observation for the same group /

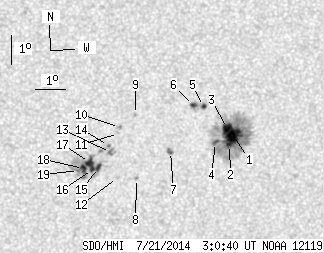

back to the solar disc SDO HMI 2014-07-21 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.15 | 137.10 | 10.37 | 78.36 | -20.99 | 69.69 | 15.29 | 209.59 | 0.5006 | 1103.7 | 351.2 | |
| 2.54 | -1.00 | 1.45 | -1.00 | -21.29 | 69.58 | 15.19 | 209.11 | 0.5037 | 965.7 | 999999 | |
| 7.80 | -1.00 | 4.45 | -1.00 | -20.74 | 69.46 | 15.06 | 209.48 | 0.4958 | 1243.3 | 999999 | |
| 1.91 | -1.00 | 1.09 | -1.00 | -21.21 | 69.10 | 14.70 | 208.42 | 0.4992 | 819.6 | 999999 | |
| 1.54 | 9.98 | 0.87 | 5.62 | -19.98 | 68.58 | 14.18 | 208.84 | 0.4793 | 936.4 | 725.2 | |
| 2.54 | -5.00 | 1.43 | -5.00 | -19.94 | 68.24 | 13.85 | 208.31 | 0.4762 | 883.8 | 999999 | |
| 1.36 | 3.45 | 0.77 | 1.96 | -21.48 | 67.61 | 13.21 | 205.70 | 0.4925 | 802.9 | 715.4 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -22.38 | 66.55 | 12.15 | 203.10 | 0.4981 | -794.0 | -594.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.20 | 66.33 | 11.94 | 204.69 | 0.4667 | -848.0 | -611.3 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -20.63 | 65.84 | 11.44 | 203.38 | 0.4695 | -973.0 | -814.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.83 | 65.82 | 11.42 | 203.17 | 0.4722 | -670.0 | -498.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.33 | 65.90 | 11.51 | 202.04 | 0.4937 | -659.0 | -550.6 | |
| 1.09 | 9.07 | 0.61 | 5.11 | -21.47 | 65.60 | 11.20 | 202.22 | 0.4799 | -904.6 | -702.7 | |
| 0.36 | -13.00 | 0.20 | -13.00 | -21.23 | 65.52 | 11.12 | 202.28 | 0.4761 | -864.8 | 999999 | |
| 3.36 | 45.28 | 1.90 | 25.57 | -21.98 | 65.24 | 10.84 | 201.16 | 0.4850 | -884.7 | -544.1 | |
| 2.27 | -15.00 | 1.28 | -15.00 | -22.04 | 65.04 | 10.64 | 200.77 | 0.4849 | -941.2 | 999999 | |
| 5.99 | -15.00 | 3.38 | -15.00 | -21.80 | 64.92 | 10.53 | 200.75 | 0.4808 | -1191.6 | 999999 | |
| 4.72 | -15.00 | 2.67 | -15.00 | -22.00 | 64.74 | 10.34 | 200.26 | 0.4827 | -1037.8 | 999999 | |
| 0.27 | -15.00 | 0.15 | -15.00 | -22.07 | 64.58 | 10.18 | 199.91 | 0.4827 | -626.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
