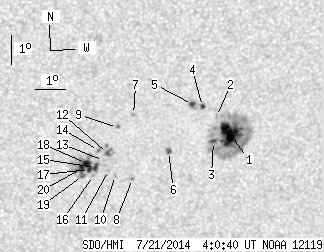

SDO HMI 2014-07-21 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.90 | 211.42 | 30.14 | 120.65 | -21.17 | 68.25 | 14.40 | 207.91 | 0.4975 | 130.8 | 112.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-21 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.50 | 138.84 | 15.18 | 79.58 | -20.93 | 69.61 | 15.76 | 210.40 | 0.5035 | 1161.0 | 351.3 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -20.34 | 69.11 | 15.26 | 210.24 | 0.4922 | 847.0 | 696.3 | |
| 2.09 | -1.00 | 1.19 | -1.00 | -21.19 | 69.10 | 15.25 | 209.31 | 0.5029 | 723.3 | 999999 | |
| 1.54 | 2.90 | 0.87 | 1.64 | -19.99 | 68.61 | 14.76 | 209.79 | 0.4838 | 961.9 | 832.3 | |
| 2.27 | 4.81 | 1.28 | 2.71 | -19.92 | 68.27 | 14.42 | 209.30 | 0.4802 | 856.2 | 664.9 | |
| 1.54 | 2.99 | 0.88 | 1.71 | -21.49 | 67.61 | 13.76 | 206.59 | 0.4964 | 817.8 | 711.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -20.21 | 66.32 | 12.47 | 205.64 | 0.4704 | -847.0 | -693.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.39 | 66.48 | 12.63 | 203.89 | 0.5012 | -570.0 | -595.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -20.64 | 65.82 | 11.98 | 204.34 | 0.4731 | -967.0 | -823.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.27 | 65.89 | 12.04 | 203.00 | 0.4961 | -744.0 | -627.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.10 | 65.64 | 11.79 | 202.72 | 0.4922 | -619.0 | -517.3 | |
| 1.63 | 8.80 | 0.92 | 4.97 | -21.51 | 65.56 | 11.71 | 203.08 | 0.4836 | -913.9 | -747.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.75 | 65.45 | 11.60 | 202.68 | 0.4862 | -687.0 | -625.3 | |
| 0.45 | 1.63 | 0.26 | 0.92 | -21.41 | 65.25 | 11.40 | 202.63 | 0.4803 | -974.4 | -786.8 | |
| 3.36 | 41.65 | 1.90 | 23.57 | -21.99 | 65.20 | 11.35 | 202.05 | 0.4880 | -932.9 | -590.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.26 | 65.15 | 11.30 | 201.74 | 0.4916 | -580.0 | -466.0 | |
| 2.45 | -15.00 | 1.39 | -15.00 | -22.05 | 65.00 | 11.15 | 201.65 | 0.4878 | -893.2 | 999999 | |
| 5.63 | -15.00 | 3.18 | -15.00 | -21.84 | 64.88 | 11.04 | 201.61 | 0.4843 | -1201.0 | 999999 | |
| 1.54 | -15.00 | 0.88 | -15.00 | -22.25 | 64.78 | 10.93 | 201.10 | 0.4895 | -657.9 | 999999 | |
| 3.90 | -15.00 | 2.21 | -15.00 | -22.01 | 64.73 | 10.88 | 201.21 | 0.4858 | -1072.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
