SDO HMI 2014-07-21 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.99 | 231.43 | 31.85 | 134.33 | -21.10 | 68.35 | 17.78 | 213.18 | 0.5225 | 186.3 | 136.6 | |
|
previous
or next observation for the same group /

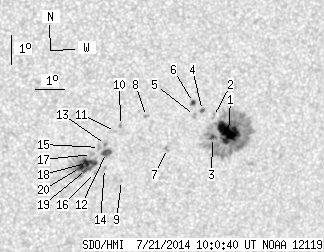

back to the solar disc SDO HMI 2014-07-21 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.40 | 157.82 | 17.73 | 92.12 | -20.91 | 69.61 | 19.04 | 215.26 | 0.5300 | 1136.5 | 298.6 | |
| 0.00 | 2.63 | 0.00 | 1.52 | -20.35 | 69.02 | 18.46 | 215.09 | 0.5184 | 780.0 | 704.6 | |
| 2.36 | -1.00 | 1.37 | -1.00 | -21.06 | 69.07 | 18.51 | 214.34 | 0.5274 | 881.1 | 999999 | |
| 0.64 | 2.36 | 0.37 | 1.36 | -20.14 | 68.62 | 18.06 | 214.75 | 0.5125 | 1048.3 | 814.1 | |
| 0.00 | 2.54 | 0.00 | 1.46 | -20.30 | 68.36 | 17.80 | 214.19 | 0.5122 | 767.0 | 606.2 | |
| 1.45 | 3.09 | 0.83 | 1.77 | -19.86 | 68.28 | 17.72 | 214.58 | 0.5062 | 867.0 | 694.2 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -21.39 | 67.57 | 17.01 | 211.78 | 0.5191 | 836.0 | 581.5 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -20.29 | 66.73 | 16.17 | 211.72 | 0.4987 | 782.0 | 541.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -22.45 | 66.12 | 15.56 | 208.50 | 0.5215 | -677.0 | -545.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.57 | 65.88 | 15.32 | 210.07 | 0.4957 | -1004.0 | -839.7 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -20.77 | 65.73 | 15.17 | 209.61 | 0.4971 | -806.0 | -669.8 | |
| 3.99 | 5.99 | 2.29 | 3.43 | -21.48 | 65.50 | 14.94 | 208.51 | 0.5046 | -946.8 | -742.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -21.20 | 65.44 | 14.88 | 208.69 | 0.5006 | -985.0 | -799.1 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -22.02 | 65.49 | 14.93 | 207.95 | 0.5116 | -623.0 | -553.2 | |
| 0.00 | 2.63 | 0.00 | 1.50 | -21.30 | 65.25 | 14.68 | 208.28 | 0.5005 | -952.0 | -771.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.15 | 65.20 | 14.64 | 207.36 | 0.5113 | -541.0 | -435.5 | |
| 0.00 | 2.36 | 0.00 | 1.35 | -21.53 | 65.00 | 14.44 | 207.65 | 0.5017 | -912.0 | -718.6 | |
| 8.44 | 39.84 | 4.84 | 22.83 | -21.80 | 64.92 | 14.36 | 207.26 | 0.5048 | -1122.7 | -516.4 | |
| 2.63 | -18.00 | 1.51 | -18.00 | -22.04 | 64.88 | 14.32 | 206.96 | 0.5076 | -755.8 | 999999 | |
| 5.08 | -18.00 | 2.91 | -18.00 | -21.97 | 64.67 | 14.11 | 206.69 | 0.5052 | -1059.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
