SDO HMI 2014-07-21 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.56 | 231.39 | 24.19 | 134.82 | -21.08 | 68.42 | 18.41 | 214.10 | 0.5274 | 260.0 | 95.7 | |
|
previous
or next observation for the same group /

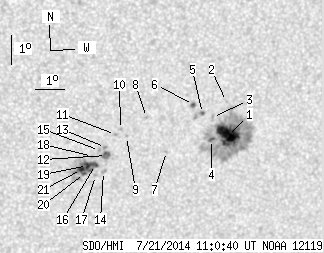

back to the solar disc SDO HMI 2014-07-21 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.04 | 163.16 | 15.83 | 95.57 | -20.92 | 69.58 | 19.56 | 215.96 | 0.5347 | 1144.2 | 299.9 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -19.77 | 69.39 | 19.38 | 217.09 | 0.5198 | -470.0 | -308.5 | |
| 0.00 | 2.63 | 0.00 | 1.53 | -20.30 | 68.98 | 18.96 | 215.87 | 0.5222 | 871.0 | 693.3 | |
| 1.63 | -1.00 | 0.95 | -1.00 | -21.04 | 69.04 | 19.03 | 215.08 | 0.5314 | 846.2 | 999999 | |
| 0.73 | 4.72 | 0.42 | 2.73 | -20.15 | 68.61 | 18.60 | 215.53 | 0.5173 | 1007.4 | 749.5 | |
| 1.18 | 2.54 | 0.68 | 1.46 | -19.84 | 68.27 | 18.26 | 215.41 | 0.5106 | 909.2 | 760.4 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.40 | 67.53 | 17.52 | 212.53 | 0.5233 | 841.0 | 681.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -20.23 | 66.71 | 16.70 | 212.62 | 0.5023 | 748.0 | 562.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.86 | 66.10 | 16.09 | 210.98 | 0.5053 | -699.0 | -518.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -20.61 | 65.87 | 15.86 | 210.88 | 0.5004 | -938.0 | -731.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.78 | 65.72 | 15.71 | 210.46 | 0.5014 | -787.0 | -665.9 | |
| 3.36 | 6.62 | 1.93 | 3.81 | -21.48 | 65.49 | 15.48 | 209.36 | 0.5087 | -973.7 | -668.9 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.21 | 65.43 | 15.42 | 209.54 | 0.5047 | -1009.0 | -829.4 | |
| 0.00 | 2.36 | 0.00 | 1.36 | -22.03 | 65.45 | 15.44 | 208.73 | 0.5154 | -715.0 | -565.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.31 | 65.24 | 15.23 | 209.14 | 0.5045 | -1014.0 | -791.0 | |
| 1.63 | 37.57 | 0.94 | 21.59 | -21.78 | 65.15 | 15.14 | 208.52 | 0.5100 | -940.8 | -666.4 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -22.16 | 65.19 | 15.18 | 208.20 | 0.5152 | -575.0 | -448.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.51 | 65.02 | 15.01 | 208.59 | 0.5055 | -993.0 | -884.0 | |
| 2.36 | -16.00 | 1.36 | -16.00 | -21.81 | 64.88 | 14.87 | 208.06 | 0.5085 | -1255.0 | 999999 | |
| 0.91 | -16.00 | 0.52 | -16.00 | -22.08 | 64.81 | 14.80 | 207.68 | 0.5115 | -711.6 | 999999 | |
| 2.72 | -16.00 | 1.56 | -16.00 | -21.94 | 64.69 | 14.68 | 207.63 | 0.5088 | -1098.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
