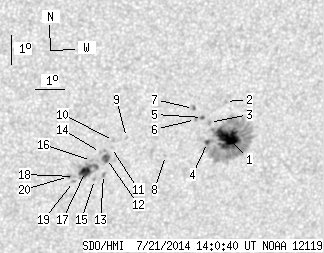

SDO HMI 2014-07-21 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.74 | 194.13 | 24.56 | 114.44 | -21.03 | 68.62 | 20.26 | 216.70 | 0.5426 | 231.7 | 116.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-21 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.58 | 146.05 | 16.92 | 86.55 | -20.90 | 69.59 | 21.23 | 218.19 | 0.5492 | 1094.6 | 276.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -19.65 | 69.34 | 20.98 | 219.41 | 0.5332 | -462.0 | -352.5 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -20.34 | 68.88 | 20.52 | 217.95 | 0.5366 | 903.0 | 755.0 | |
| 1.54 | -1.00 | 0.91 | -1.00 | -21.02 | 68.90 | 20.55 | 217.17 | 0.5444 | 756.2 | 999999 | |
| 0.64 | 1.63 | 0.37 | 0.95 | -20.16 | 68.61 | 20.25 | 217.81 | 0.5322 | 961.3 | 838.0 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -20.22 | 68.38 | 20.02 | 217.42 | 0.5307 | 866.0 | 734.9 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -19.85 | 68.26 | 19.90 | 217.72 | 0.5254 | 921.0 | 772.7 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -21.41 | 67.50 | 19.14 | 214.81 | 0.5368 | 620.0 | 544.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -20.76 | 66.07 | 17.72 | 213.53 | 0.5171 | -591.0 | -579.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.85 | 65.64 | 17.28 | 212.79 | 0.5147 | -845.0 | -722.6 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -21.09 | 65.60 | 17.24 | 212.46 | 0.5172 | -703.0 | -549.8 | |
| 3.18 | 7.26 | 1.84 | 4.20 | -21.45 | 65.47 | 17.11 | 211.87 | 0.5208 | -891.8 | -699.8 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -22.00 | 65.44 | 17.08 | 211.23 | 0.5272 | -671.0 | -546.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -21.24 | 65.24 | 16.88 | 211.76 | 0.5164 | -914.0 | -711.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.16 | 65.15 | 16.79 | 210.63 | 0.5270 | -628.0 | -495.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.51 | 64.97 | 16.61 | 211.05 | 0.5175 | -927.0 | -735.8 | |
| 7.80 | 19.69 | 4.52 | 11.41 | -21.88 | 64.80 | 16.45 | 210.42 | 0.5209 | -1051.6 | -784.3 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -22.04 | 64.45 | 16.09 | 209.71 | 0.5203 | -891.0 | -784.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.21 | 64.43 | 16.07 | 209.52 | 0.5223 | -652.0 | -552.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.03 | 64.24 | 15.88 | 209.41 | 0.5187 | -761.0 | -672.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
