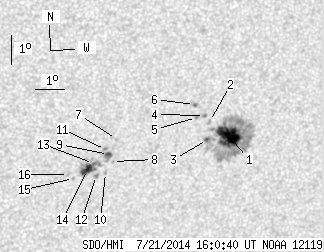

SDO HMI 2014-07-21 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.98 | 182.92 | 28.47 | 108.65 | -21.05 | 68.57 | 21.32 | 218.05 | 0.5523 | 373.5 | 61.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-21 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.01 | 128.15 | 21.48 | 76.57 | -20.90 | 69.60 | 22.35 | 219.60 | 0.5595 | 1081.5 | 214.9 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -20.37 | 68.82 | 21.57 | 219.27 | 0.5466 | 798.0 | 691.7 | |
| 1.18 | 10.25 | 0.70 | 6.10 | -20.98 | 68.84 | 21.59 | 218.56 | 0.5534 | 768.6 | 322.3 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -20.16 | 68.62 | 21.37 | 219.27 | 0.5424 | 983.0 | 890.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -20.22 | 68.35 | 21.10 | 218.85 | 0.5405 | 743.0 | 688.3 | |
| 0.36 | 1.81 | 0.21 | 1.06 | -19.78 | 68.21 | 20.96 | 219.23 | 0.5345 | 930.8 | 706.1 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -20.87 | 65.67 | 18.42 | 214.41 | 0.5244 | -905.0 | -616.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -21.62 | 65.62 | 18.37 | 213.50 | 0.5329 | -424.0 | -441.4 | |
| 2.27 | 5.80 | 1.32 | 3.38 | -21.38 | 65.45 | 18.20 | 213.54 | 0.5287 | -908.8 | -720.2 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -21.99 | 65.43 | 18.18 | 212.82 | 0.5358 | -610.0 | -457.6 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -21.20 | 65.33 | 18.08 | 213.55 | 0.5255 | -949.0 | -822.1 | |
| 0.00 | 2.27 | 0.00 | 1.33 | -22.08 | 65.13 | 17.88 | 212.30 | 0.5346 | -675.0 | -545.5 | |
| 0.36 | 22.22 | 0.21 | 12.95 | -21.67 | 64.98 | 17.72 | 212.52 | 0.5283 | -1087.2 | -726.6 | |
| 7.80 | -13.00 | 4.55 | -13.00 | -21.87 | 64.79 | 17.54 | 212.04 | 0.5293 | -1048.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.16 | 64.35 | 17.10 | 211.08 | 0.5295 | -667.0 | -555.2 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -22.02 | 64.16 | 16.91 | 210.95 | 0.5263 | -786.0 | -605.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
