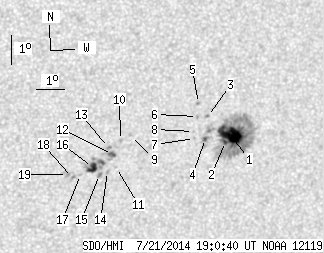

SDO HMI 2014-07-21 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.71 | 189.88 | 22.06 | 114.14 | -21.03 | 68.48 | 22.89 | 220.02 | 0.5665 | 344.8 | 106.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-21 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.02 | 129.67 | 15.72 | 78.49 | -20.85 | 69.56 | 23.97 | 221.58 | 0.5742 | 1155.5 | 272.5 | |
| 1.72 | -1.00 | 1.04 | -1.00 | -21.08 | 69.42 | 23.83 | 221.14 | 0.5753 | 886.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -20.21 | 68.64 | 23.05 | 221.30 | 0.5589 | 872.0 | 674.9 | |
| 1.18 | 13.06 | 0.71 | 7.84 | -20.95 | 68.68 | 23.10 | 220.43 | 0.5671 | 836.5 | 538.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -19.76 | 68.25 | 22.67 | 221.40 | 0.5505 | 896.0 | 696.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -20.19 | 68.28 | 22.70 | 220.88 | 0.5554 | 811.0 | 700.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -20.93 | 68.29 | 22.71 | 219.98 | 0.5633 | 584.0 | 446.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -20.70 | 68.22 | 22.63 | 220.18 | 0.5601 | 658.0 | 527.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -20.75 | 66.02 | 20.43 | 217.32 | 0.5407 | -732.0 | -542.0 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -20.91 | 65.70 | 20.11 | 216.69 | 0.5396 | -885.0 | -687.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -21.83 | 65.69 | 20.10 | 215.62 | 0.5499 | -479.0 | -381.8 | |
| 1.81 | 6.62 | 1.07 | 3.90 | -21.38 | 65.48 | 19.90 | 215.86 | 0.5431 | -853.1 | -672.8 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -21.14 | 65.31 | 19.72 | 215.91 | 0.5388 | -948.0 | -803.6 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -21.96 | 65.39 | 19.80 | 215.08 | 0.5489 | -511.0 | -428.5 | |
| 0.00 | 2.54 | 0.00 | 1.50 | -22.05 | 65.12 | 19.54 | 214.62 | 0.5478 | -664.0 | -507.8 | |
| 5.98 | 20.22 | 3.52 | 11.90 | -21.80 | 64.85 | 19.26 | 214.52 | 0.5426 | -1025.2 | -704.0 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -22.03 | 64.46 | 18.87 | 213.74 | 0.5420 | -661.0 | -600.9 | |
| 0.00 | 1.90 | 0.00 | 1.12 | -22.12 | 64.20 | 18.61 | 213.27 | 0.5410 | -766.0 | -654.8 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -22.01 | 64.01 | 18.42 | 213.12 | 0.5382 | -901.0 | -697.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
