SDO HMI 2014-07-21 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.91 | 0.00 | 3.16 | -16.71 | 51.06 | 6.59 | 196.67 | 0.3869 | 266.0 | 161.9 | |
|
previous
or next observation for the same group /

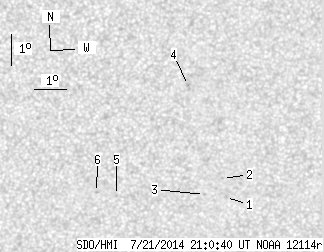

back to the solar disc SDO HMI 2014-07-21 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.39 | -17.75 | 52.93 | 8.45 | 199.98 | 0.4113 | 718.0 | 623.1 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -17.13 | 52.80 | 8.33 | 200.26 | 0.4012 | 813.0 | 623.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -17.65 | 52.24 | 7.77 | 198.57 | 0.4061 | 714.0 | 498.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -14.08 | 51.60 | 7.13 | 200.30 | 0.3484 | 821.0 | 610.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.65 | 49.41 | 4.94 | 192.06 | 0.3941 | -608.0 | -418.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.54 | 48.77 | 4.29 | 190.58 | 0.3904 | -862.0 | -695.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
