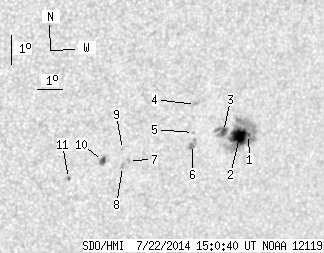

SDO HMI 2014-07-22 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.31 | 100.39 | 16.42 | 67.74 | -21.04 | 69.10 | 34.52 | 231.21 | 0.6807 | 482.9 | 267.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-22 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 80.44 | 0.81 | 54.70 | -20.96 | 70.23 | 35.65 | 232.18 | 0.6913 | 513.2 | 331.4 | |
| 16.51 | -1.00 | 11.24 | -1.00 | -21.01 | 69.88 | 35.30 | 231.87 | 0.6882 | 971.1 | 999999 | |
| 3.63 | -1.00 | 2.44 | -1.00 | -20.80 | 69.18 | 34.61 | 231.60 | 0.6798 | 921.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.07 | -19.83 | 67.84 | 33.27 | 231.78 | 0.6591 | 676.0 | 600.4 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -20.77 | 67.99 | 33.42 | 230.71 | 0.6676 | 608.0 | 516.0 | |
| 0.00 | 6.08 | 0.00 | 4.05 | -21.18 | 68.06 | 33.48 | 230.26 | 0.6713 | 890.0 | 613.7 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -21.60 | 65.68 | 31.11 | 227.76 | 0.6511 | -686.0 | -516.3 | |
| 0.00 | 1.90 | 0.00 | 1.24 | -21.80 | 65.50 | 30.92 | 227.36 | 0.6509 | -755.0 | -567.4 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -21.22 | 65.36 | 30.79 | 227.96 | 0.6448 | -638.0 | -497.9 | |
| 2.45 | 5.08 | 1.58 | 3.27 | -21.56 | 64.68 | 30.10 | 226.93 | 0.6409 | -837.6 | -637.2 | |
| 0.54 | 1.72 | 0.35 | 1.10 | -22.11 | 63.52 | 28.95 | 225.17 | 0.6344 | -770.8 | -559.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
