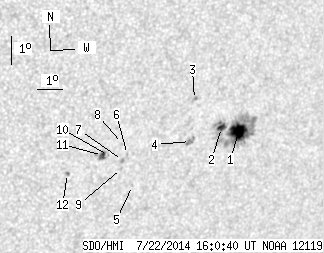

SDO HMI 2014-07-22 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.67 | 106.56 | 16.77 | 72.33 | -21.06 | 69.02 | 35.00 | 231.53 | 0.6856 | 383.4 | 199.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-22 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.14 | 70.55 | 12.43 | 48.40 | -21.00 | 69.88 | 35.86 | 232.28 | 0.6937 | 968.8 | 234.9 | |
| 3.81 | 14.06 | 2.58 | 9.53 | -20.83 | 69.15 | 35.13 | 231.96 | 0.6852 | 799.5 | 535.9 | |
| 0.00 | 2.45 | 0.00 | 1.62 | -19.82 | 67.83 | 33.81 | 232.21 | 0.6647 | 574.0 | 454.1 | |
| 0.00 | 5.26 | 0.00 | 3.53 | -21.24 | 68.03 | 34.01 | 230.60 | 0.6770 | 810.0 | 622.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -22.64 | 66.12 | 32.10 | 227.36 | 0.6690 | -525.0 | -442.5 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -21.56 | 65.65 | 31.63 | 228.27 | 0.6559 | -628.0 | -492.9 | |
| 0.00 | 2.18 | 0.00 | 1.42 | -21.75 | 65.51 | 31.49 | 227.90 | 0.6560 | -739.0 | -562.8 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -21.17 | 65.37 | 31.35 | 228.50 | 0.6500 | -461.0 | -424.7 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -22.03 | 65.53 | 31.51 | 227.59 | 0.6585 | -481.0 | -354.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -21.56 | 64.92 | 30.90 | 227.64 | 0.6487 | -530.0 | -493.7 | |
| 2.72 | 6.53 | 1.76 | 4.23 | -21.55 | 64.69 | 30.67 | 227.44 | 0.6463 | -805.1 | -569.9 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -22.10 | 63.49 | 29.47 | 225.68 | 0.6394 | -827.0 | -708.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
