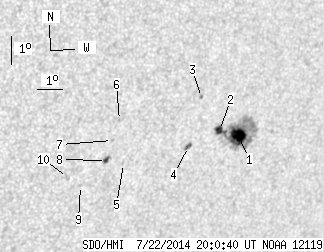

SDO HMI 2014-07-22 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.12 | 98.29 | 16.20 | 68.81 | -21.02 | 69.01 | 37.21 | 233.15 | 0.7073 | 465.6 | 239.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-22 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.96 | 81.87 | 10.58 | 57.83 | -21.01 | 69.87 | 38.07 | 233.79 | 0.7157 | 973.8 | 324.2 | |
| 4.44 | -1.00 | 3.10 | -1.00 | -20.79 | 69.02 | 37.22 | 233.48 | 0.7059 | 867.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -19.62 | 67.97 | 36.17 | 234.19 | 0.6878 | 655.0 | 487.6 | |
| 1.63 | 3.72 | 1.13 | 2.56 | -21.26 | 67.89 | 36.09 | 232.11 | 0.6979 | 707.8 | 517.3 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -21.71 | 65.42 | 33.61 | 229.70 | 0.6767 | -678.0 | -548.5 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -20.23 | 64.89 | 33.09 | 231.10 | 0.6604 | -621.0 | -471.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -20.90 | 64.78 | 32.98 | 230.18 | 0.6643 | -637.0 | -473.9 | |
| 2.09 | 4.17 | 1.39 | 2.77 | -21.57 | 64.71 | 32.91 | 229.31 | 0.6687 | -782.8 | -585.4 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -22.38 | 63.91 | 32.10 | 227.66 | 0.6671 | -585.0 | -475.1 | |
| 0.00 | 3.08 | 0.00 | 2.03 | -22.08 | 63.32 | 31.52 | 227.53 | 0.6591 | -499.0 | -359.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
