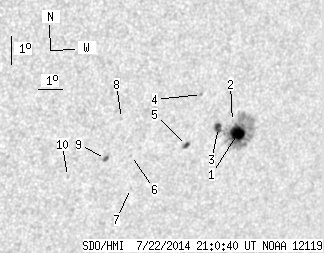

SDO HMI 2014-07-22 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.85 | 91.66 | 16.85 | 64.93 | -20.98 | 69.25 | 38.01 | 233.74 | 0.7150 | 549.7 | 216.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-22 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.78 | 79.87 | 11.24 | 56.91 | -21.00 | 69.86 | 38.62 | 234.15 | 0.7211 | 959.6 | 270.0 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -20.58 | 69.53 | 38.28 | 234.44 | 0.7152 | 463.0 | 429.9 | |
| 4.62 | -1.00 | 3.25 | -1.00 | -20.75 | 69.00 | 37.75 | 233.88 | 0.7110 | 847.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -19.59 | 67.98 | 36.73 | 234.62 | 0.6934 | 620.0 | 469.0 | |
| 2.18 | 3.35 | 1.51 | 2.33 | -21.29 | 67.84 | 36.59 | 232.43 | 0.7031 | 671.8 | 477.3 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -21.51 | 65.69 | 34.44 | 230.58 | 0.6834 | -535.0 | -386.5 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -22.65 | 65.96 | 34.72 | 229.43 | 0.6943 | -476.0 | -464.1 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -20.23 | 64.96 | 33.71 | 231.60 | 0.6668 | -736.0 | -645.9 | |
| 1.27 | 3.08 | 0.85 | 2.06 | -21.56 | 64.67 | 33.42 | 229.73 | 0.6737 | -833.2 | -681.5 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -22.10 | 63.32 | 32.08 | 227.96 | 0.6648 | -621.0 | -549.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
