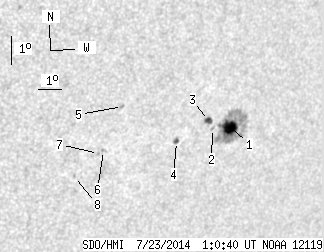

SDO HMI 2014-07-23 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.14 | 90.23 | 14.04 | 66.18 | -21.02 | 69.46 | 40.43 | 235.24 | 0.7390 | 486.7 | 196.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-23 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.24 | 75.27 | 10.50 | 55.59 | -21.02 | 69.91 | 40.88 | 235.53 | 0.7433 | 862.6 | 242.2 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -21.00 | 69.13 | 40.10 | 235.07 | 0.7357 | 531.0 | 490.0 | |
| 3.45 | 5.44 | 2.50 | 3.94 | -20.72 | 68.87 | 39.83 | 235.25 | 0.7315 | 716.2 | 519.1 | |
| 1.45 | 2.63 | 1.04 | 1.88 | -21.36 | 67.72 | 38.68 | 233.75 | 0.7241 | 683.9 | 555.0 | |
| 0.00 | 1.81 | 0.00 | 1.24 | -20.03 | 65.12 | 36.08 | 233.59 | 0.6898 | -634.0 | -476.5 | |
| 0.00 | 1.90 | 0.00 | 1.31 | -21.49 | 64.75 | 35.71 | 231.54 | 0.6960 | -813.0 | -635.0 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -21.58 | 64.58 | 35.54 | 231.30 | 0.6949 | -663.0 | -595.8 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -22.32 | 63.82 | 34.78 | 229.84 | 0.6928 | -714.0 | -602.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
