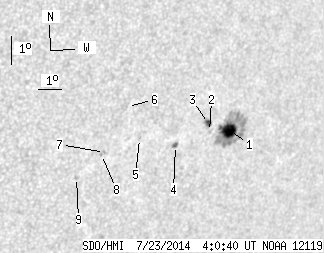

SDO HMI 2014-07-23 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.14 | 82.55 | 14.44 | 62.16 | -21.06 | 69.40 | 42.01 | 236.11 | 0.7545 | 423.9 | 169.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-23 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.15 | 67.95 | 11.48 | 51.57 | -21.04 | 69.90 | 42.51 | 236.44 | 0.7592 | 841.4 | 223.3 | |
| 0.00 | 1.36 | 0.00 | 1.02 | -21.02 | 69.01 | 41.62 | 235.95 | 0.7506 | 250.0 | 345.5 | |
| 2.81 | 4.26 | 2.09 | 3.17 | -20.74 | 68.87 | 41.48 | 236.20 | 0.7478 | 794.6 | 624.9 | |
| 1.18 | 2.72 | 0.87 | 2.00 | -21.41 | 67.67 | 40.28 | 234.69 | 0.7399 | 646.1 | 504.2 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -21.08 | 66.03 | 38.64 | 234.05 | 0.7221 | -647.0 | -562.4 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -19.95 | 65.20 | 37.81 | 234.87 | 0.7069 | -603.0 | -482.8 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -21.47 | 64.69 | 37.31 | 232.68 | 0.7115 | -820.0 | -688.9 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -21.53 | 64.59 | 37.20 | 232.53 | 0.7109 | -776.0 | -613.7 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -22.27 | 63.78 | 36.39 | 231.09 | 0.7080 | -621.0 | -501.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
