SDO HMI 2014-07-23 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.14 | 83.30 | 13.80 | 63.30 | -21.08 | 69.39 | 42.55 | 236.39 | 0.7597 | 437.1 | 148.9 | |
|
previous
or next observation for the same group /

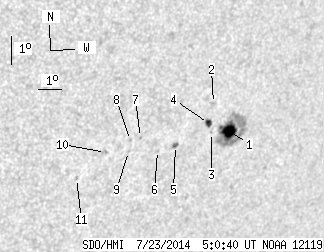

back to the solar disc SDO HMI 2014-07-23 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.88 | 66.50 | 10.62 | 50.98 | -21.08 | 69.91 | 43.07 | 236.70 | 0.7646 | 874.3 | 195.1 | |
| 0.00 | 2.00 | 0.00 | 1.49 | -20.07 | 68.85 | 42.01 | 237.30 | 0.7493 | 169.0 | 145.0 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -21.06 | 69.10 | 42.26 | 236.27 | 0.7569 | 523.0 | 461.2 | |
| 3.08 | 4.45 | 2.31 | 3.33 | -20.74 | 68.86 | 42.02 | 236.50 | 0.7529 | 742.4 | 537.0 | |
| 1.18 | 2.81 | 0.87 | 2.08 | -21.41 | 67.64 | 40.80 | 235.00 | 0.7449 | 710.6 | 479.4 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -21.53 | 66.91 | 40.07 | 234.41 | 0.7386 | 181.0 | 212.1 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -21.04 | 66.02 | 39.18 | 234.44 | 0.7272 | -626.0 | -506.3 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -21.12 | 65.63 | 38.79 | 234.09 | 0.7238 | -607.0 | -489.6 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -21.49 | 65.66 | 38.82 | 233.66 | 0.7264 | -355.0 | -346.9 | |
| 0.00 | 1.72 | 0.00 | 1.22 | -21.47 | 64.69 | 37.85 | 233.05 | 0.7168 | -755.0 | -706.8 | |
| 0.00 | 1.27 | 0.00 | 0.89 | -22.30 | 63.74 | 36.90 | 231.41 | 0.7131 | -620.0 | -500.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
