SDO HMI 2014-07-23 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.78 | 61.58 | 12.39 | 51.37 | -21.18 | 69.55 | 47.65 | 238.89 | 0.8069 | 554.7 | 212.6 | |
|
previous
or next observation for the same group /

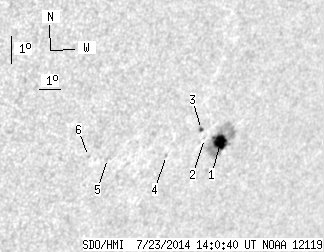

back to the solar disc SDO HMI 2014-07-23 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.69 | 55.14 | 11.50 | 46.29 | -21.19 | 69.87 | 47.97 | 239.04 | 0.8098 | 757.9 | 244.2 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -21.00 | 69.01 | 47.11 | 238.86 | 0.8014 | 585.0 | 501.3 | |
| 1.09 | 2.27 | 0.89 | 1.85 | -20.68 | 68.74 | 46.84 | 239.10 | 0.7975 | 628.6 | 524.0 | |
| 0.00 | 1.09 | 0.00 | 0.87 | -21.46 | 67.39 | 45.50 | 237.54 | 0.7889 | 649.0 | 490.7 | |
| 0.00 | 1.63 | 0.00 | 1.25 | -21.38 | 64.66 | 42.77 | 236.17 | 0.7634 | -780.0 | -613.9 | |
| 0.00 | 1.18 | 0.00 | 0.89 | -21.26 | 63.78 | 41.88 | 235.81 | 0.7544 | -638.0 | -549.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
