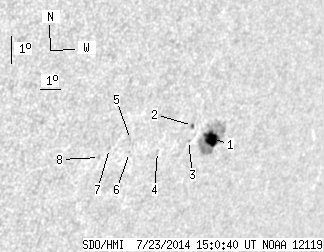

SDO HMI 2014-07-23 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.42 | 57.86 | 13.08 | 48.75 | -21.16 | 69.49 | 48.14 | 239.15 | 0.8110 | 427.2 | 224.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-23 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.69 | 50.42 | 12.48 | 42.79 | -21.16 | 69.85 | 48.50 | 239.32 | 0.8143 | 725.3 | 267.3 | |
| 0.73 | 1.63 | 0.60 | 1.35 | -20.65 | 68.70 | 47.35 | 239.38 | 0.8020 | 689.0 | 668.6 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -21.15 | 68.71 | 47.37 | 238.81 | 0.8043 | 288.0 | 362.2 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -21.43 | 67.34 | 46.00 | 237.83 | 0.7933 | 526.0 | 387.5 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -20.92 | 65.89 | 44.54 | 237.67 | 0.7777 | -603.0 | -507.0 | |
| 0.00 | 1.00 | 0.00 | 0.79 | -21.37 | 66.01 | 44.67 | 237.21 | 0.7810 | -347.0 | -328.5 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -21.17 | 65.02 | 43.68 | 236.92 | 0.7708 | -410.0 | -346.3 | |
| 0.00 | 1.09 | 0.00 | 0.84 | -21.45 | 64.67 | 43.33 | 236.40 | 0.7690 | -768.0 | -562.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
