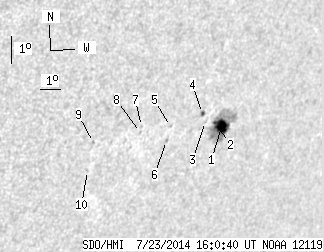

SDO HMI 2014-07-23 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.15 | 59.77 | 10.41 | 50.88 | -21.18 | 69.40 | 48.61 | 239.34 | 0.8152 | 402.4 | 247.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-23 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.88 | 50.86 | 9.35 | 43.69 | -21.20 | 69.85 | 49.06 | 239.53 | 0.8193 | 764.3 | 293.6 | |
| 0.27 | -1.00 | 0.23 | -1.00 | -21.04 | 69.48 | 48.69 | 239.55 | 0.8154 | 814.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.92 | -20.96 | 68.95 | 48.16 | 239.39 | 0.8105 | 237.0 | 322.6 | |
| 1.00 | 2.09 | 0.83 | 1.74 | -20.68 | 68.68 | 47.89 | 239.59 | 0.8070 | 657.2 | 589.5 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -21.02 | 67.28 | 46.49 | 238.54 | 0.7959 | 299.0 | 337.6 | |
| 0.00 | 1.09 | 0.00 | 0.89 | -21.49 | 67.28 | 46.49 | 238.00 | 0.7980 | 473.0 | 426.9 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -20.92 | 65.88 | 45.09 | 237.95 | 0.7827 | -506.0 | -433.4 | |
| 0.00 | 1.09 | 0.00 | 0.86 | -21.13 | 65.91 | 45.12 | 237.73 | 0.7840 | -561.0 | -418.7 | |
| 0.00 | 0.82 | 0.00 | 0.63 | -21.33 | 63.84 | 43.05 | 236.39 | 0.7658 | -663.0 | -557.8 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -22.28 | 63.93 | 43.14 | 235.34 | 0.7715 | -565.0 | -482.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
