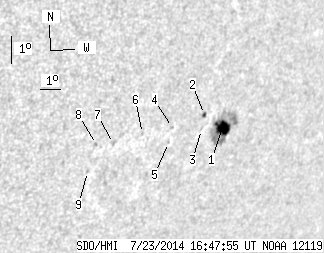

SDO HMI 2014-07-23 16:47:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.78 | 60.85 | 13.66 | 52.27 | -21.20 | 69.36 | 49.01 | 239.49 | 0.8187 | 424.7 | 177.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-23 16:47:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.87 | 52.22 | 12.90 | 45.29 | -21.19 | 69.81 | 49.46 | 239.71 | 0.8227 | 715.3 | 221.6 | |
| 0.91 | 2.18 | 0.76 | 1.83 | -20.67 | 68.69 | 48.34 | 239.80 | 0.8109 | 645.5 | 543.8 | |
| 0.00 | 0.63 | 0.00 | 0.54 | -21.18 | 68.76 | 48.41 | 239.25 | 0.8136 | 523.0 | 464.0 | |
| 0.00 | 0.82 | 0.00 | 0.67 | -21.01 | 67.28 | 46.92 | 238.75 | 0.7998 | 411.0 | 355.8 | |
| 0.00 | 0.73 | 0.00 | 0.60 | -21.52 | 67.29 | 46.94 | 238.18 | 0.8021 | 502.0 | 458.6 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -21.12 | 65.90 | 45.54 | 237.95 | 0.7878 | -523.0 | -469.4 | |
| 0.00 | 1.63 | 0.00 | 1.28 | -21.37 | 64.65 | 44.30 | 237.01 | 0.7776 | -554.0 | -472.2 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -21.35 | 63.87 | 43.52 | 236.61 | 0.7703 | -712.0 | -544.6 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -22.27 | 63.81 | 43.45 | 235.53 | 0.7743 | -592.0 | -510.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
