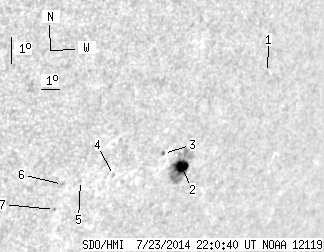

SDO HMI 2014-07-23 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.42 | 52.95 | 11.49 | 48.60 | -21.20 | 69.47 | 52.01 | 240.74 | 0.8441 | 362.9 | 225.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-23 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.07 | -18.38 | 73.16 | 55.70 | 245.22 | 0.8654 | 99.0 | 82.0 | |
| 12.06 | 45.87 | 11.17 | 42.45 | -21.25 | 69.82 | 52.36 | 240.84 | 0.8472 | 669.6 | 298.5 | |
| 0.36 | 1.45 | 0.32 | 1.30 | -20.72 | 68.61 | 51.15 | 240.93 | 0.8354 | 615.0 | 508.5 | |
| 0.00 | 1.27 | 0.00 | 1.09 | -21.30 | 66.32 | 48.86 | 239.31 | 0.8181 | -430.0 | -333.2 | |
| 0.00 | 1.00 | 0.00 | 0.83 | -21.35 | 64.72 | 47.26 | 238.51 | 0.8044 | -473.0 | -409.7 | |
| 0.00 | 1.18 | 0.00 | 0.96 | -21.43 | 63.89 | 46.43 | 238.02 | 0.7973 | -618.0 | -476.2 | |
| 0.00 | 1.09 | 0.00 | 0.90 | -22.27 | 63.86 | 46.40 | 237.04 | 0.8009 | -522.0 | -442.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
