SDO HMI 2014-07-27 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.08 | 108.25 | 73.21 | 287.36 | -8.61 | 248.35 | -78.41 | 99.83 | 0.9837 | -87.2 | -74.8 | |
|
previous
or next observation for the same group /

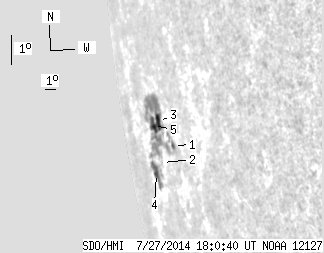

back to the solar disc SDO HMI 2014-07-27 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 107.25 | 3.38 | 284.77 | -8.40 | 250.88 | -75.89 | 99.95 | 0.9751 | 359.9 | -72.5 | |
| 0.00 | 1.00 | 0.00 | 2.59 | -9.12 | 248.86 | -77.90 | 100.41 | 0.9824 | -259.0 | -264.5 | |
| 8.06 | -1.00 | 20.07 | -1.00 | -7.81 | 249.19 | -77.57 | 99.13 | 0.9808 | 392.9 | 999999 | |
| 9.78 | -1.00 | 28.97 | -1.00 | -9.59 | 247.51 | -79.26 | 100.71 | 0.9867 | -486.7 | 999999 | |
| 7.70 | -1.00 | 20.79 | -1.00 | -8.02 | 248.29 | -78.47 | 99.23 | 0.9838 | -58.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
