SDO HMI 2014-07-27 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.82 | 126.81 | 58.17 | 293.33 | -8.81 | 248.43 | -76.68 | 100.26 | 0.9780 | -143.6 | -123.6 | |
|
previous
or next observation for the same group /

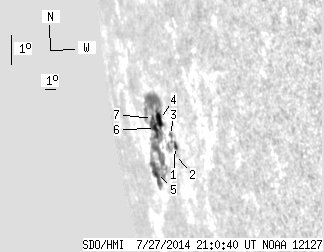

back to the solar disc SDO HMI 2014-07-27 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 12.68 | 3.90 | 25.63 | -8.47 | 250.79 | -74.32 | 100.24 | 0.9688 | 384.6 | 144.2 | |
| 0.00 | 1.36 | 0.00 | 2.69 | -8.73 | 250.64 | -74.46 | 100.49 | 0.9696 | 156.0 | 211.8 | |
| 0.82 | -1.00 | 1.64 | -1.00 | -8.17 | 250.36 | -74.74 | 99.87 | 0.9704 | 432.7 | 999999 | |
| 6.52 | 112.77 | 14.24 | 265.01 | -7.78 | 249.22 | -75.89 | 99.32 | 0.9747 | 459.7 | -153.2 | |
| 11.78 | -4.00 | 29.79 | -4.00 | -9.58 | 247.61 | -77.49 | 100.93 | 0.9813 | -601.1 | 999999 | |
| 3.44 | -4.00 | 7.97 | -4.00 | -8.12 | 248.49 | -76.62 | 99.57 | 0.9776 | 61.9 | 999999 | |
| 0.27 | -4.00 | 0.63 | -4.00 | -7.84 | 248.25 | -76.85 | 99.25 | 0.9783 | 8.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
