SDO HMI 2014-07-28 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.66 | 267.73 | 63.01 | 358.93 | -8.24 | 248.96 | -66.79 | 101.19 | 0.9287 | 304.4 | -121.8 | |
|
previous
or next observation for the same group /

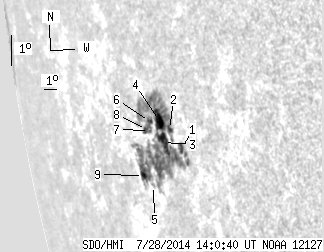

back to the solar disc SDO HMI 2014-07-28 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.26 | 265.83 | 4.05 | 356.26 | -8.49 | 250.60 | -65.16 | 101.76 | 0.9184 | 546.6 | -119.1 | |
| 3.17 | -1.00 | 4.03 | -1.00 | -7.97 | 249.87 | -65.89 | 101.06 | 0.9227 | 646.0 | 999999 | |
| 14.50 | -1.00 | 18.95 | -1.00 | -8.43 | 249.25 | -66.51 | 101.44 | 0.9272 | 304.9 | 999999 | |
| 14.77 | -1.00 | 19.34 | -1.00 | -7.75 | 249.16 | -66.59 | 100.70 | 0.9270 | 598.4 | 999999 | |
| 0.00 | 1.90 | 0.00 | 2.67 | -9.89 | 247.87 | -67.89 | 102.75 | 0.9373 | -379.0 | -423.7 | |
| 3.26 | -1.00 | 4.42 | -1.00 | -7.85 | 248.33 | -67.42 | 100.68 | 0.9324 | 174.7 | 999999 | |
| 1.18 | -1.00 | 1.60 | -1.00 | -8.14 | 248.23 | -67.52 | 100.97 | 0.9333 | 66.0 | 999999 | |
| 3.81 | -1.00 | 5.24 | -1.00 | -8.13 | 247.99 | -67.77 | 100.91 | 0.9347 | -15.2 | 999999 | |
| 3.71 | -1.00 | 5.38 | -1.00 | -9.65 | 247.13 | -68.62 | 102.36 | 0.9413 | -576.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
